DIRECT FIRED WATER HEATERS
Stationary and Mobile Systems

Feature for feature our heating systems reflect leading-edge technology, which is upgraded on a continual basis in order to maintain a leadership position in concrete production. Our heaters have proven to be the most rugged, efficient and reliable in the industry, with a form-follows-function design to facilitate both installation and service. In addition, wherever possible, off-the-shelf brand name replacement parts are used to ensure availability and cost savings for our customers. Options include, among others, total water management systems.

Advantages of Pearson Heating Systems:

  • Burner firing rate matches make-up water flow rate to guarantee a constant water temperature
  • Operating efficiency: 85% to 90%
  • Direct-fired "in tank" heater features design simplicity and is virtually maintenance free
  • Totally automatic temperature control and water feed system
  • Digital temperature control can be remotely located
  • Applicable for both city and well water
  • Weatherproof exterior / no need for a building
  • Virtually maintenance free
  • Operates on #2 oil, natural gas or propane
  • All tanks designed for simplified water chiller add-on
  • U.L. approved burner operates on #2 fuel oil, natural gas, propane or combination of gas and oil
  • Exclusive patented burner flame retention design does not require a combustion chamber
  • Optional pumps available, mounted and pumped
  • No chemical treatment required
  • No costly re-tubing
  • No boiler room or boiler inspection required
  • No gas ignition required with oil operation

Exclusive on all Pearson heaters...
The Pearson Power Flame Burner
Lo-fire with smooth lightoff/pulsation-free operation

These patented burners feature:

  • Solid state timer controls for low-fire start to hi-fire operation
  • Pre-purge and delayed oil start
  • Factory-wired burner
  • Mounted Control Panel
  • Patented flame retention head design
  • Flange mounted
  • All burners pre-tested
  • Electric ignition standard
  • Operates on #2 oil, natural gas or propane
  • Economically priced

Contact your Pearson Area Dealer or Contact Pearson directly to help you size which heater model is right for you.

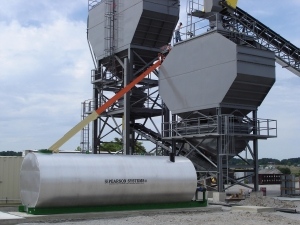

P-10-20W


P-30-2-20W


Portable Chiller with Insulated Tank

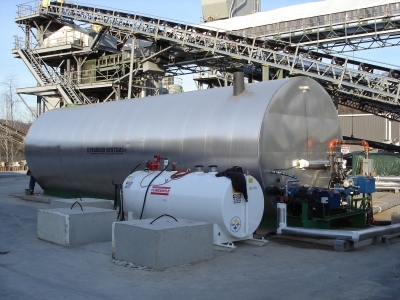

P-20-20W with Steam Generator

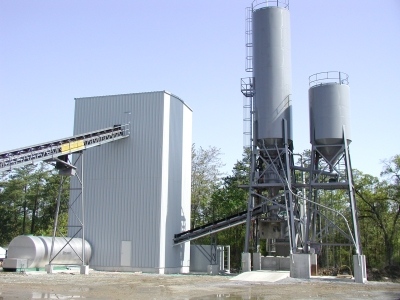

Heater System installed

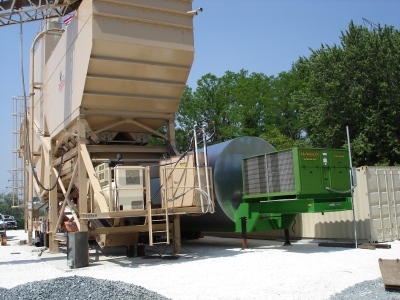

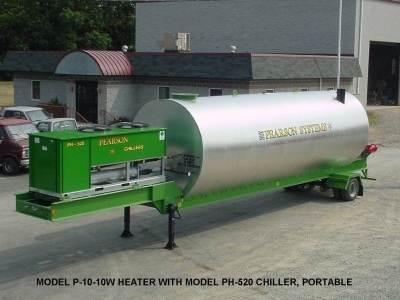

Portable P-10-10W Heater with PH-520 Chiller

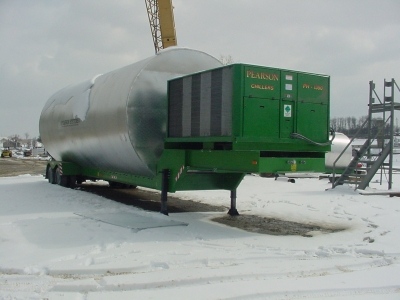

Portable P-20-20W Heater with PH-1390 Chiller

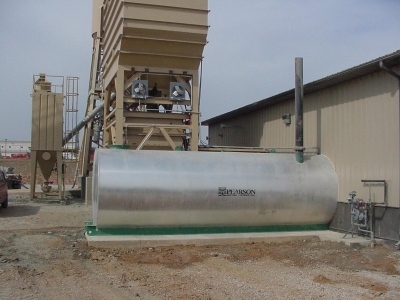

P-10-10W

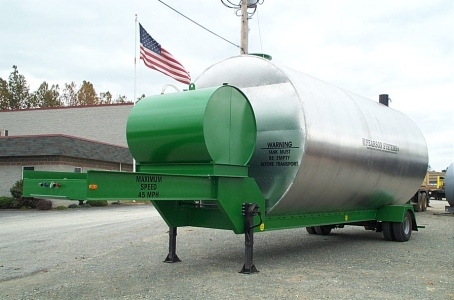

Portable P-8-6W

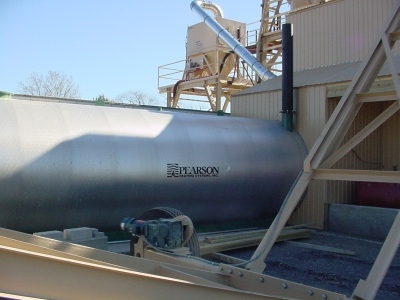

P-10-20W





PEARSON'S STANDARD DIRECT-FIRED WATER HEATERS

Operating Capacities

Model

Min. Makeup Water
GPM/Flow Rate
Hourly Recovery Rate
 Gals/100 Rise
Available Gal.
1st Hr/100 Rise
Total Usable Gal.
8 Hr./100 Rise
P-3-2W

4.7

283 3,282 5,256
P-5-3W

7.0

423' 5,423 8,384
P-5-6W

14.1

846' 5,846 11,768
P-5-10W

23.5

1,410' 6,410 16,280
P-8-6W 14.1 846 8,846 14,768
P-8-10W 23.5 1,410 9,410 19,280
P-10-6W 14.1 846 10,846 16,768
P-10-10W 23.5 1,410 11,410 21,280
P-10-15W 35.5 2,115 12,115 26,920
P-10-20W 47.0 2,820 12,820 32,560
P-10-25W 59.0 2,820 12,820 32,560
P-15-10W 23.5 3,540 13,540 38,320
P-15-15W 35.5 2,115 17,115 31,920
P-15-20W 47.0 2,820 17,820 37,560
P-15-25W 59.0 3,540 18,540 43,320
P-20-10W 23.5 1,410 21,410 31,280
P-20-15W 35.5 2,115 22,115 36,920
P-20-20W 47.0 2,820 22,820 42,560
P-20-25W 59.0 3,540 23,540 48,320
P-25-15W 35.5 2,115 27,115 41,920
P-25-20W 47.0 2,820 27,820 47,560
P-25-25W 59.0 3,540 28,540 53,320
P-30-20W 47.0 2,820 32,820 52,569
P-30-25W 59.0 3,540 35,540 58,320
P-15-2-20W 94.0 5,640 20,640 60,120
P-15-2-25W 118.0 7,080 22,080 71,640
P-20-2-20W 94.0 5,640 25,640 65,120
P-20-2-25W 118.0 7,080 27,080 76,640
P-25-2-20W 94.0 5,640 30,640 70,120
P-25-2-25W 118.0 7,080 32,080 81,640
P-30-2-20W 94.0 5,640 35,640 75,120
P-30-2-25W 118.0 7,080 37,080 86,640

Note: Multiple burners available in a single tank. Please call us at 410.827.8027 or email us.
